> Product features
The dual power automatic switch is used to switch between two power solurces.It is divided into common power supply and standby power supply. When the common power supply is powered off, the standby power supply is used. When the common power supply is called, the common power supply is restored), if you do not need automatic switching in special circlumstances, you can also set it to manual switching (this type of manual /automatic dual-use, arbitrary adjustment).

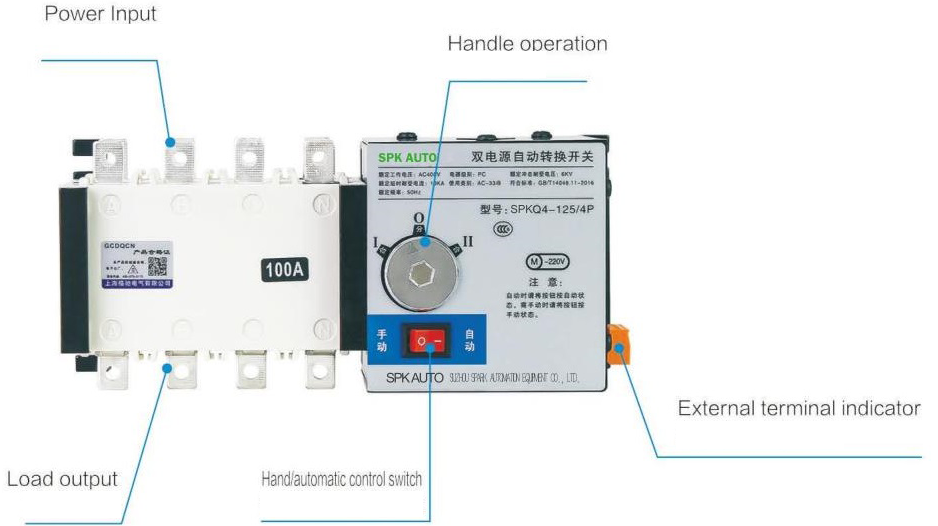

> Product manual

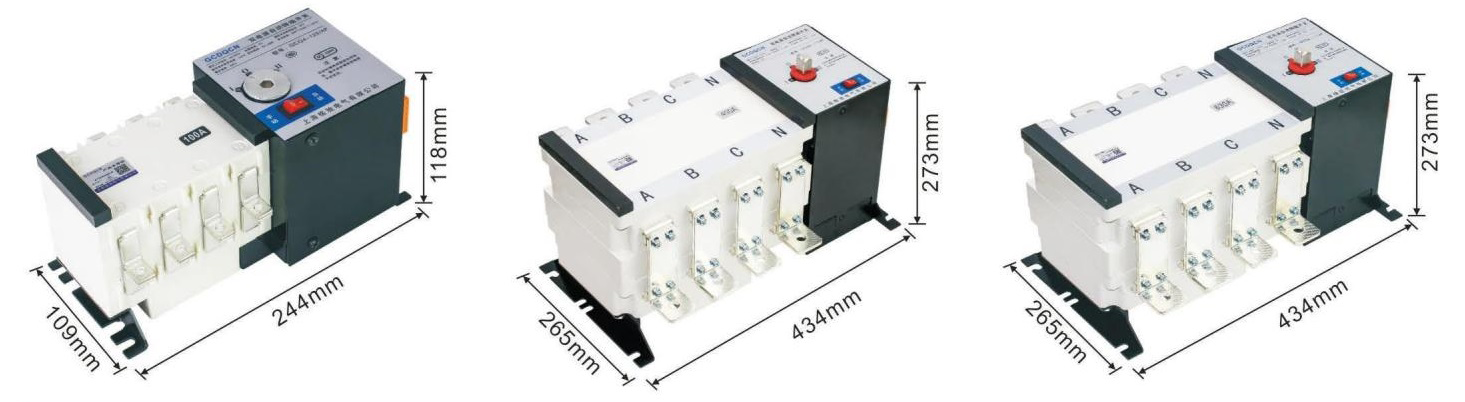

> Product Size
> Product parameters
Product Brand | Suzhou Spark Automation Equipment Co., Ltd. | Operation Method | Manual / Auto |
Product Name | Dual power automatic transfer switch | Current soecifications | 32A-1600A |
Product Number | SPKQ4-4P | Conversion Time | ≤2s |
Symbol Standard | GB/T14048.11-2016 | Display Function | External indicator |
Ats Level | PC level | Conversion Method | Self-return |
Rated voltage | AC400V | Current soecifications | 63A-1600A |

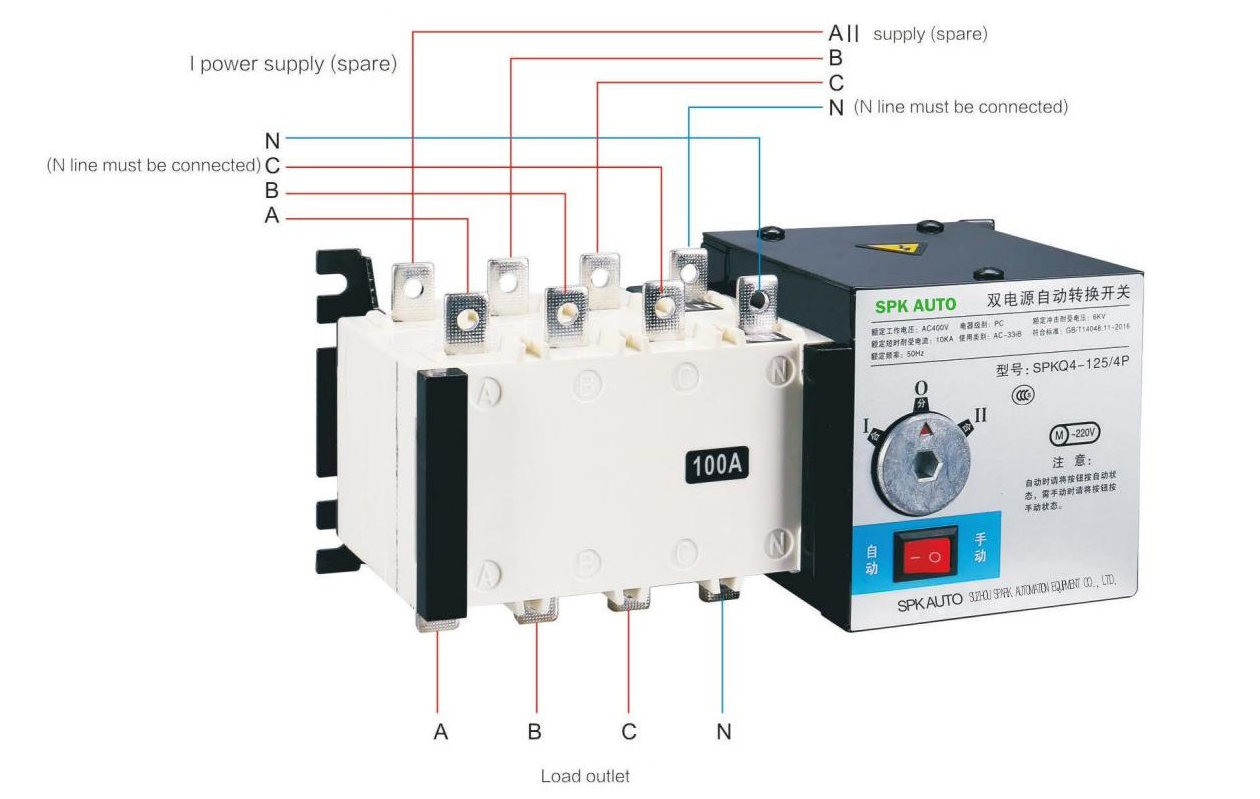

> Product wiring
