> Product features
End-type series dual-power automatic transfer switch is a combination of switch and logic control, without the need for an additional controller to truly achieve electromechanical integration, with functions such as voltage detection, frequency, communication interface,electrical,mechanical interlock,etc.can realize automatic, electric remote, Emergency manual control.
> Product manual

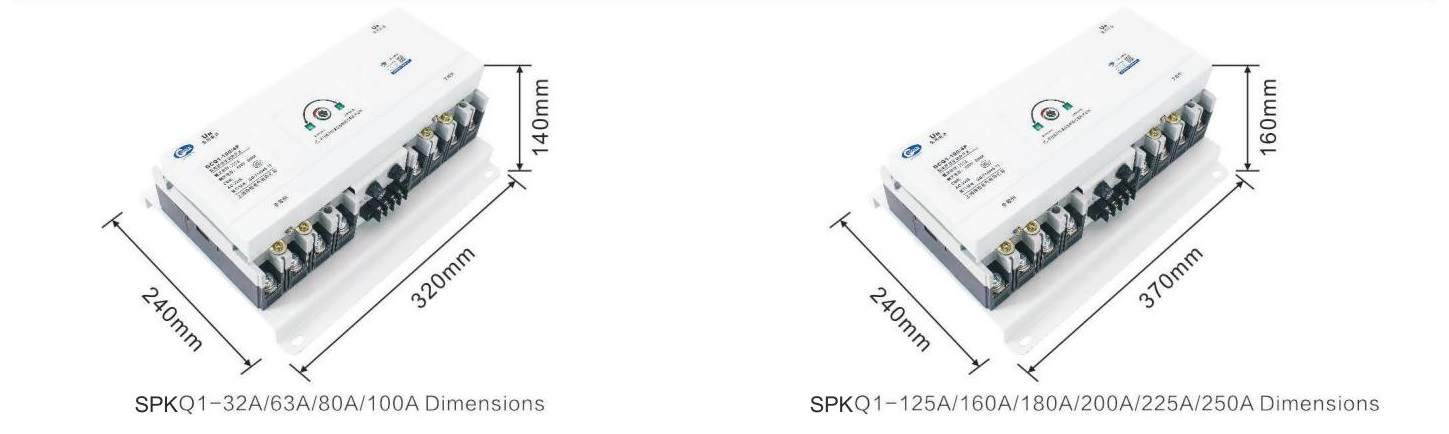

> Product Size
> Product parameters
Product brand | Suzhou Spark Automation Equipment Co., Ltd. | Display function | Indicator display |
Product name | Dual power automatic transfer switch | Current specifications | 32A-250A |
Product number | SPKQ1-4P | Rated voltage | 400V |
Certified Product | CCC Certification | ATS level | CB level |
Standards compliant | GB/T14048.11 | Use level | AC-33SB |

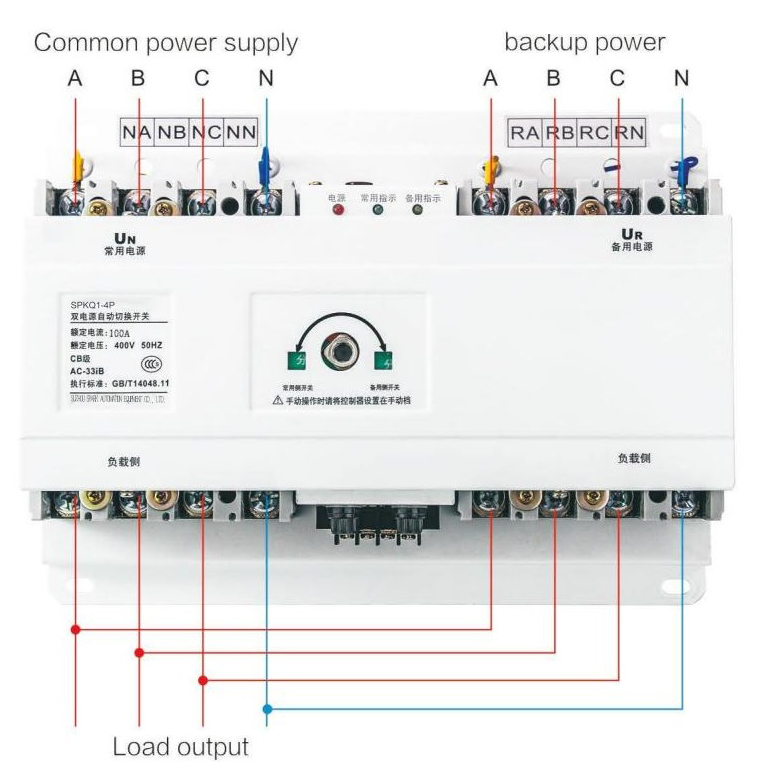

> Product wiring
